Logic

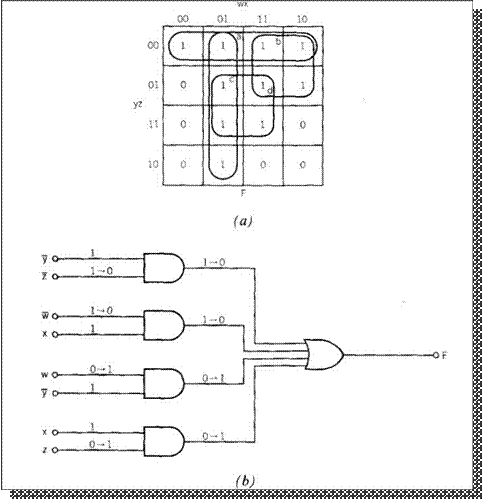

Network Example
CE-653 - Hazards and Analysis
Methods
10
}Logic Networks may be free of function hazards but not of logic hazards
}Consider transitions between minterms:
}aàd, dàa, càb, bàc
}Theorem:
A 2-level SOP function f is free of logic hazards, iff it contains all Primes (PIs) of f.
A 2-level SOP function f is free of logic hazards, iff it contains all Primes (PIs) of f.
18/3/2014
