DIMS
20/4/2014
CE-653 - Indicating Logic
11
}DIMS is the simplest form
of DR logic
}Each signal is
instantiated in .t and .f rails
}Truth-table Minterms

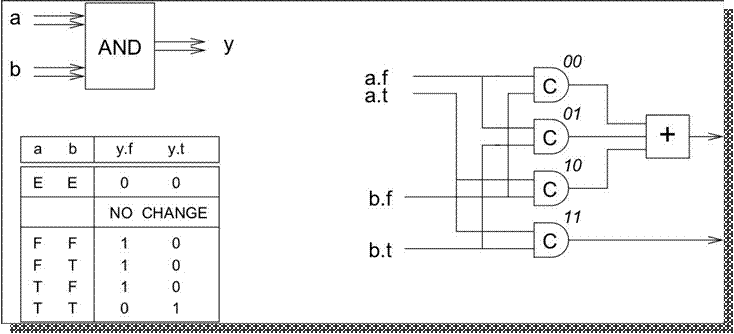

directly translated to 2-level DR logic
}1st DR circuit level is C-Elements, 2nd level is OR gates
