Asynchronous Indicating Logic (Data-dependent logic with Completion Detection)

Threshold Gates – DIMS Generalisation

20/4/2014

CE-653 - Indicating Logic

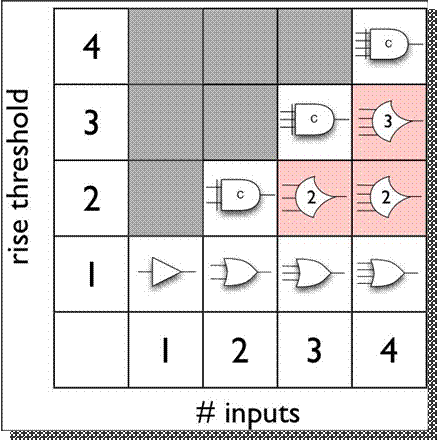

}Threshold gates

}generalisation of
C-elements

}

}Threshold Gate Output Rises when the number of threshold inputs rises

}Threshold Gate Output Falls when all inputs fall

}
