Fork
– Join: Other Characteristics
CE-653 - Asynchronous Pipeline
Performance
}Shorter pipeline (lower static slack) may not be
bottleneck
}Can happen if peak
throughout of shorter pipeline is larger than longer pipeline

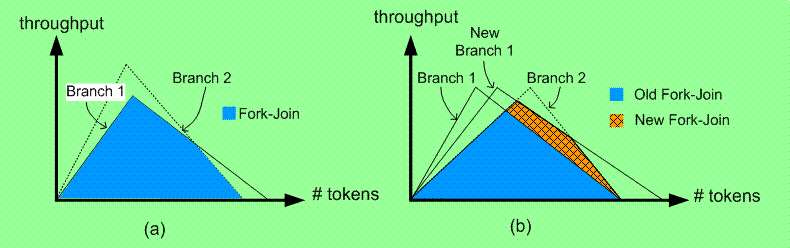

}See Figure (a) above
}Equal static slack is not always optimal
}i.e., adding buffers may
improve peak throughput despite causing a static slack imbalance
}See Figure (b) above
