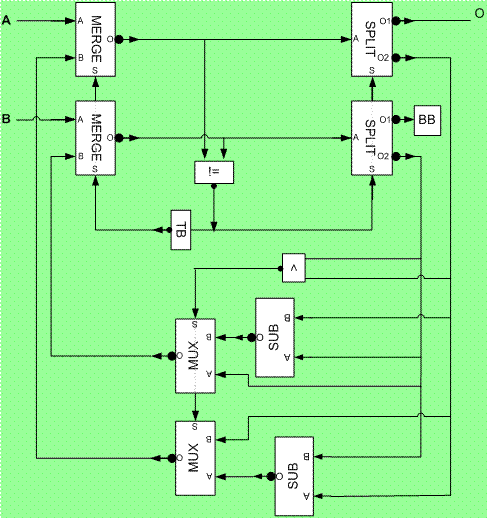

A GCD Implementation
}Operation
}TB generates tokens to select input tokens come in on PIs
A and B
}Tested for equality which controls how they are routed
}If != routed to SUBs & ‘<‘
}Otherwise, A is routed to output
}SUBs concurrently generate differences.
}Specific difference routed back to merge controlled by ‘<‘ and MUXs
}
