Micropipeline Analysis - PTnets
17/3/2014
CE-653 - Micropipeline Templates
9
}

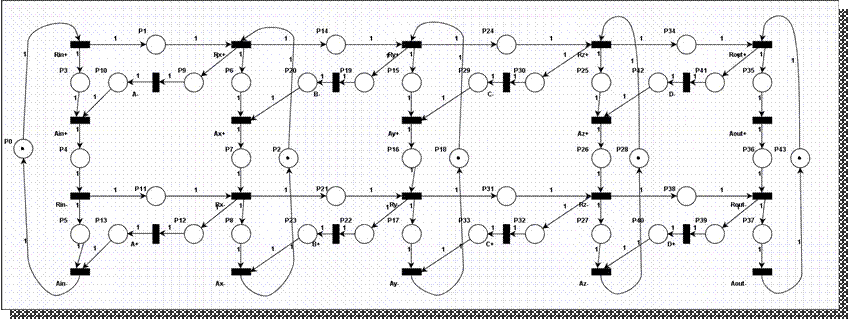

Four-stage Micropipeline PTnet:
}
}
}
}
}
}
}
}
}
}
Represents 4 C Elements and their environments
}
Correct operation may be verified by possible signal
orders
