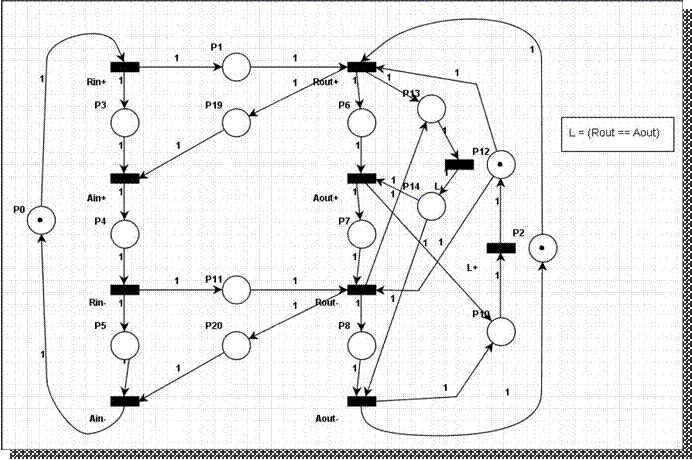

Micropipeline 2-Phase PTnet including Latch Enable and Single Latch Signal
}Note the AC Return from Choice/Choice Needed
17/3/2014
23
CE-653 - Micropipeline Templates
