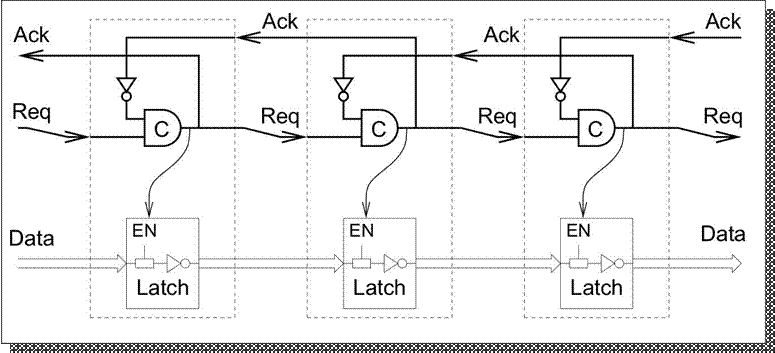

Four-Phase Micropipeline
}
Latches are active high
}
Four-phase, so latches open on first ½ of h/s and close
on second ½
}
17/3/2014
13
CE-653 - Micropipeline Templates
Correctness conditions:
1)
A latch cannot OPEN (read another data item) until the successor has captured the current one
2)
A latch cannot CLOSE (become opaque) before having captured the data item from its predecessor
NOTE: Feedback in C.L. requires two latches, as in conventional synchronous circuits!
